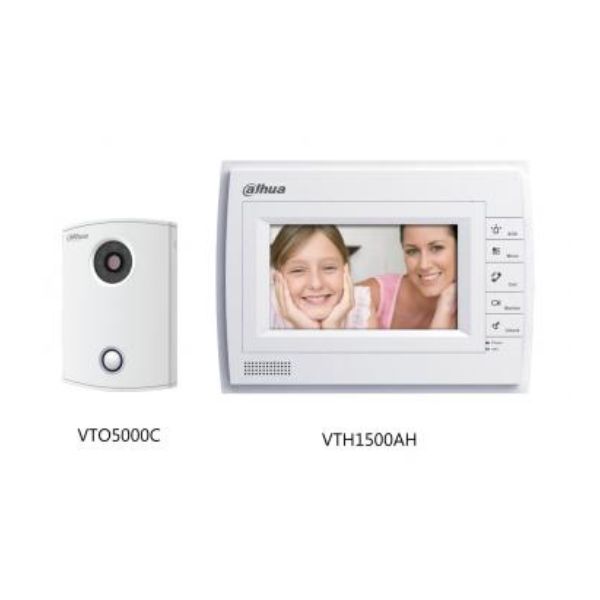

Dahua 7 Inch Analog Kit VTKB-VTO5000C-VTH1500AH

Description

• 7” color LCD display with 800×480 resolution
• 600 lines video resolution and night vision support
• Bidirectional talk and audio input/output
• Mechanical button with background light and alarm tamper support
• Remote network upgrading and net control

• Type: Color
• Resolution: 600 lines
• Night Vision: Support

• Audio Input: 1-ch microphone input
• Audio Output: 1-ch loudspeaker output
• Bidirectional Talk: 1-ch bidirectional talk, two-way

• Input: One mechanical button with background light
• Alarm Tamper: Support

• Power: DC 24V
• Power Consumption: Standby ≤1W, work ≤4W
• Work Environment:
  • Temperature: -20°C ~ +60°C
  • Dimensions: 141mm * 100mm * 16.8mm (L * W * T)
  • Weight: 0.4kg

• Main Processor: NEC MCU
• Operation Interface: Simple OSD message
• Input Device: Mechanical keys, 5

• Net Control: Monitor & Unlock, Call management center for emergency
• RS485 Bus: Remotely upgrade

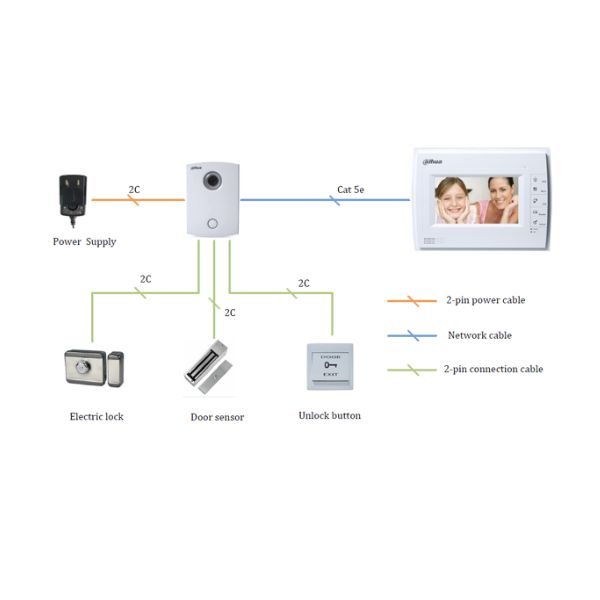

• Net Interface: RJ45 (non-Ethernet) plug connected with distributor, including power supply, AV, and control signal
• RS485 Bus: Control and software upgrading
• DC Power: 24V

• Remote network upgrading

• Power: 24V / 0.3A
• Power Consumption: Max 6W
• Temperature: -5°C – +55°C
• Humidity: 20% – 90%
• Dimensions: 261.0mm * 192.0mm * 24.1mm (L * W * T)
• Weight: 0.6 Kg
